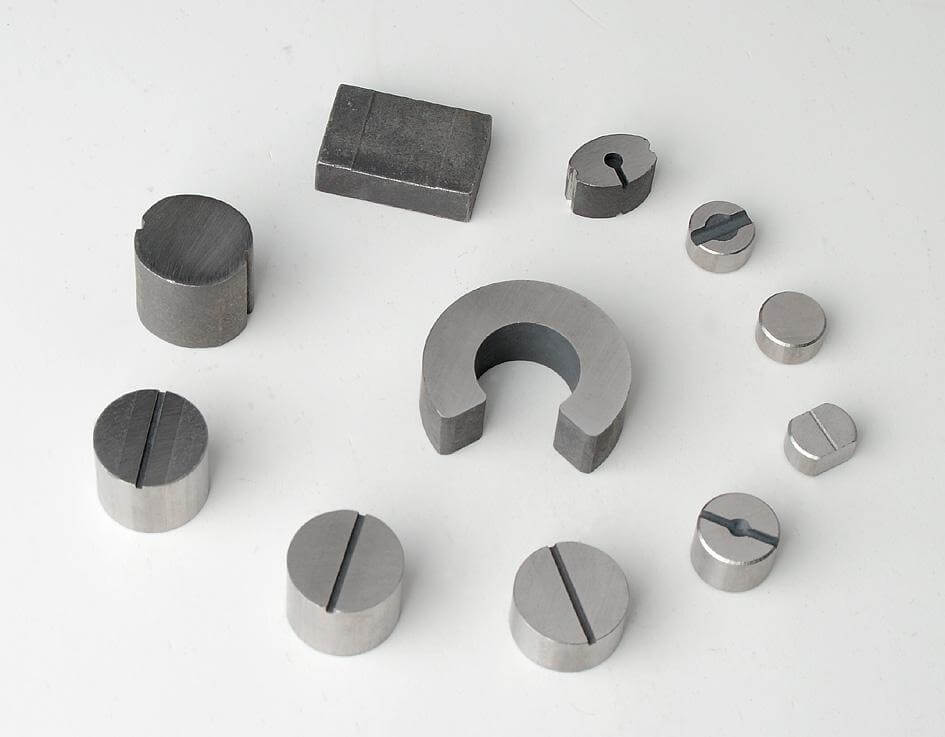

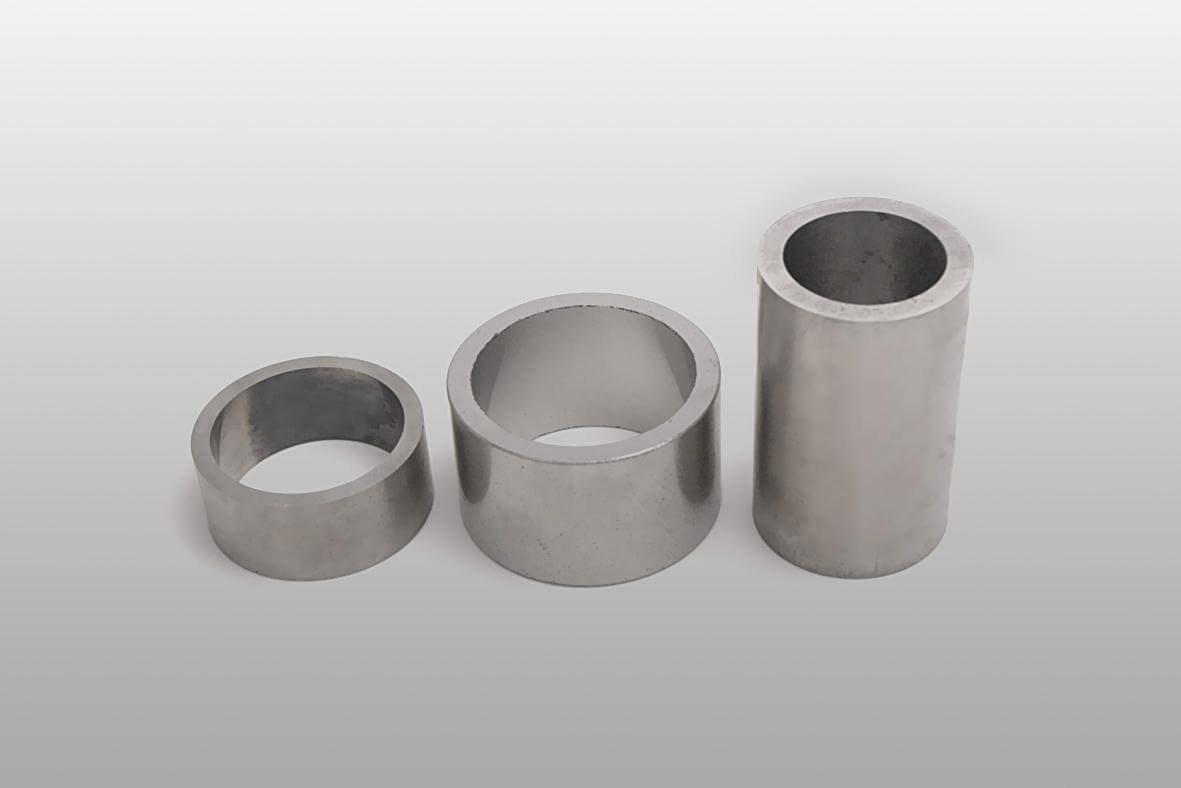

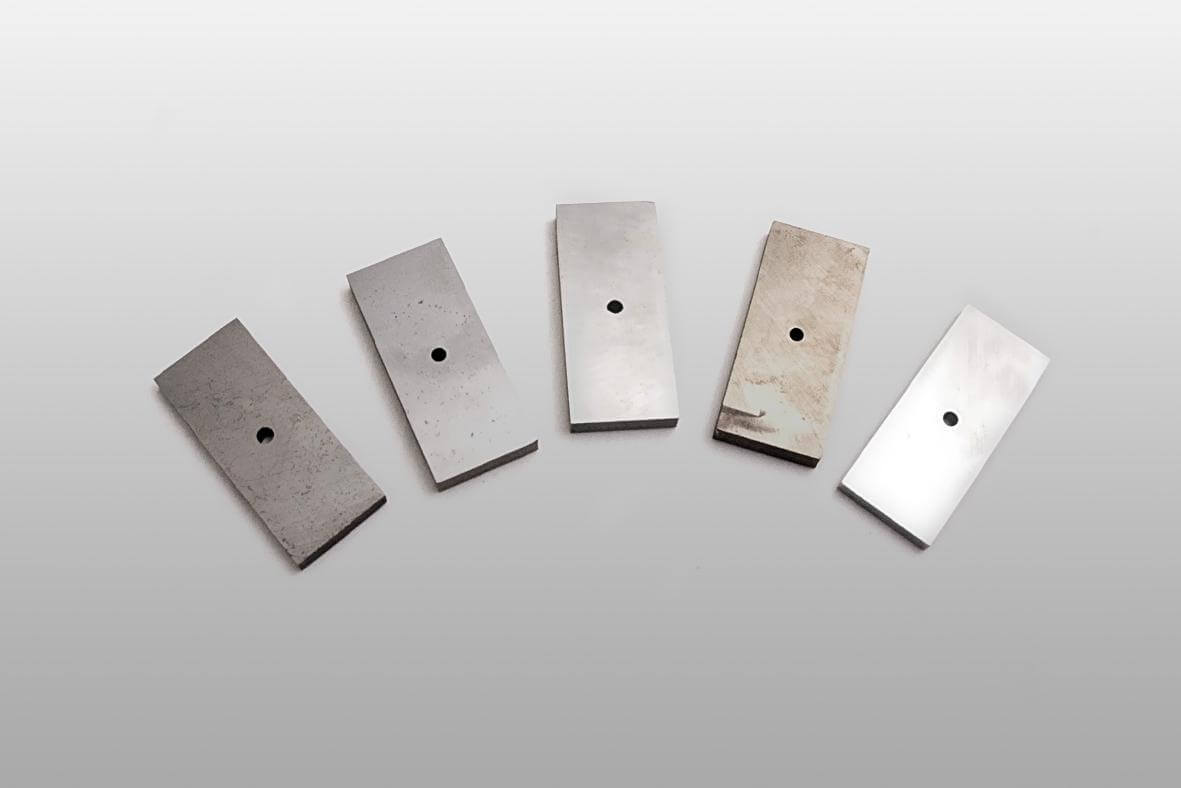

Alnico permanent magnet a metal alloy composed of alumuinum,nickel,cobalt,iron and other trace element composition.Alnico permanent magnet has two diffierent production processes:casting and sintering. Casting proces can be processed into different sizes and shapes;compared with the casting process,the sintered product confined to a small size,its production out of the rough size tolerance is better.Alnico has a strong anti-corrosion ability,the surface doesnot require plating
| Performance | ||||||||
| Characteristics MODEL | (BH)max | Br | Hcb | Hcj | d | α(Br) | Curie point | remarks |
| kJ/m3(MGOe) | mT(kG) | kA/m(kOe) | kA/m(kOe) | g/cm3 | %/K | ℃ | ||
| SAlNiCo4/1 | 3.2-4.8 (0.40-0.60) | 870-890 (8.7-8.9) | 9-11 (0.11-0.14) | 10-12 (0.13-0.15) | 6.8 | -0.02 | 750 | Isotropic |
| SAlNiCo8/5 | 8.5-9.5 (1.07-1.19) | 530-620 (5.3-6.2) | 45-50 (0.57-0.63) | 47-52 (0.59-0.65) | 6.8 | -0.02 | 750 | |
| SAlNiCo10/5 | 9.5-11 (1.19-1.38) | 630-700 (6.3-7.0) | 48-56 (0.60-0.70) | 50-58 (0.63-0.73) | 6.8 | -0.02 | 780 | |
| SAlNiCo12/5 | 11-13 (1.38-1.63) | 700-750 (7.0-7.5) | 50-56 (0.62-0.70) | 53-58 (0.66-0.73) | 7.0 | -0.02 | 800 | |
| SAlNiCo14/5 | 13-15 (1.63-1.88) | 730-800 (7.3-8.0) | 47-50 (0.59-0.63) | 50-53 (0.63-0.67) | 7.1 | -0.02 | 790 | |
| SAlNiCo14/6 | 14-16 (1.76-2.00) | 620-810 (6.2-8.1) | 56-64 (0.70-0.81) | 58-66 (0.73-0.83) | 7.1 | -0.02 | 790 | |
| SAlNiCo14/8 | 14-16 (1.76-2.00) | 550-610 (5.5-6.1) | 75-88 (0.94-1.11) | 80-92 (1.00-1.16) | 7.1 | -0.01 | 850 | |
| SAlNiCo18/10 | 16-19 (2.00-2.39) | 570-620 (5.7-6.2) | 92-100 (1.16-1.26) | 99-107 (1.24-1.34) | 7.2 | -0.01 | 860 | |
| SAlNiCo29/6 | 29-33 (3.64-4.15) | 970-1200 (9.7-12) | 58-64 (0.73-0.80) | 60-66 (0.75-0.83) | 7.2 | -0.02 | 860 | Anisotropic |
| SAlNiCo30/6 | 30-34 (3.77-4.27) | 1000-1100 (10-11) | 58-64 (0.73-0.80) | 60-66 (0.75-0.83) | 7.2 | -0.02 | 860 | |
| SAlNiCo42/10 | 42-46 (5.27-5.77) | 950-1100 (9.5-11) | 100-110 (1.26-1.38) | 104-114 (1.30-1.43) | 7.2 | -0.01 | 860 | |
| SAlNiCo33/11 | 33-38 (4.14-4.77) | 700-800 (7-8) | 107-115 (1.34-1.45) | 111-119 (1.39-1.50) | 7.2 | -0.01 | 860 | |
| SANiCo35/5 | 35-39 (4.40-4.90) | 1100-1200 (11-12) | 48-52 (0.60-0.65) | 50-54 (0.63-0.68) | 7.2 | -0.02 | 850 | |
| SAlNiCo37/15 | 37-41 (4.65-5.15) | 700-800 (7.0-8.0) | 140-147 (1.76-1.85) | 150-158 (1.88-1.98) | 7.2 | -0.01 | 870 | |
| SAlNiCo39/12 | 39-43 (4.90-5.40) | 830-900 (8.3-9.0) | 115-123 (1.45-1.54) | 119-127 (1.50-1.60) | 7.25 | -0.01 | 860 | |
| SAlNiCo44/12 | 44-48 (5.53-6.03) | 900-950 (9-9.5) | 119-127 (1.50-1.60) | 124-132 (1.56-1.66) | 7.25 | -0.01 | 860 | |
| SAlNiCo40/15 | 40-48 (5.02-6.03) | 750-850 (7.5-8.5) | 143-151 (1.80-1.90) | 155-163 (1.95-2.05) | 7.2 | -0.01 | 870 | |
| SAlNiCo44/15 | 44-48 (5.53-6.03) | 800-880 (8.0-8.8) | 148-160 (1.86-2.00) | 155-163 (1.95-2.05) | 7.2 | -0.01 | 870 | |
